Empire Angle Machine Vice with Graduated Swivel Base
APEX Code 717AS

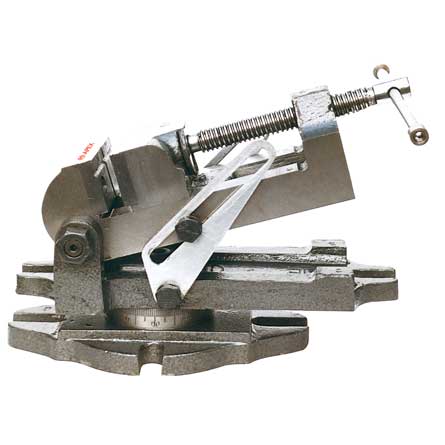

Empire Angle Machine Vice with Graduated Swivel Base
(2.1/2", 3")
Features :
Finish : Hammer tone mid grey.
- Code 717A is mounting on swivel base providing 360° bases have 5/8" key way and bolt slots for locating and mounting of machine.
- Body side Base, cast iron of selected quality, Main Screw Handle and side plates, High quality steel.
Finish : Hammer tone mid grey.
| Specifications | ||
| Size in inches | 2.1/2 | 3 |
| Width of Jaws (in mm ) | 65 | 75 |
| Depth of Jaws (in mm) | 30 | 40 |
| Opening of Jaws (in mm) |
65 | 85 |
| Length overall (in mm) | 230 | 275 |
| Height overall (in mm) | 115 | 130 |
| Width overall (in mm) | 110 | 130 |
| Weight (app. in Kgs.) | 5 | 7 |
