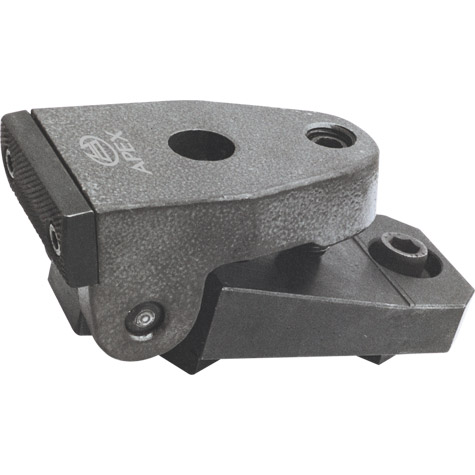

Lever Clamp
APEX Code 901

Lever Clamp

Features :
  • Suitable for machining of large object where entire surface is to be kept free from obstruction.
  • No limitation of job size because of two piece construction.
  • Maximum clamping force with minimum effort.
  • Radial serrated Jaw assures firm clamping.
  • Used for clamping jobs having uneven & unmachined surface.
  • To fix the job rigidly, long base plate with two T-Nuts is used. This avoids reduction of clamping pressure due to slippage.
Application :
  • Used on milling, shaping, drilling machines & surface grinders etc.
  • Useful to clamp the job having height more than 60 mm.
Construction :
  • Main body of S. G. Iron, clamping Jaw & Base plate made of Hardened steel.
Finish : Black oxidized & powder coated.
Specifications in mm
T - Slot Size L L1 B H Height of Job ( mm ) Pressure max kN Weight App. Kgs.
12 to 20 100 135 60 65 More than 60 15 7.5 2
