Dial Comparator Stand

APEX Code 764

Dial Comparator Stand

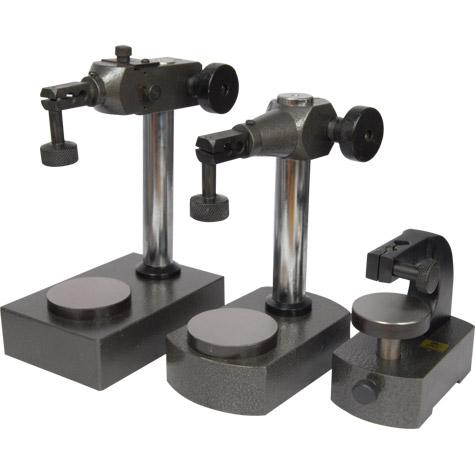

Features :
  • This range of comparators with a round anvil are especially useful for fast and efficient dimansional inspection on production parts.
  • The longitudinal slide can be adjusted to different positions using the knurled steel knob. It moves along the ground steel pillar which is at accurate right angles to the base.
  • The round anvil with a diameter of 60 mm is hardened to 50-55 HRC and ground for high accuracy. The flatness of the working face of the anvil is controlled to within 0.00008" )2 Microns)
Construction :
  • The Comparator stand comprises of heavy duty base made from close grained cast iron precisely ground and machined providing a totally flat surface.
  • All models are supplied with in a dial gauge.
Specifications
Code Throat Depth
MM		 Measuring Range
MM		 Fine Adjustment
MM		 Pillar Dia.
MM		 Weight app.
Kgs.
764-3 75 120 3 25 3.250
764-8 60 90 ... 25 3.350
764-5 45 30 ... ... 2.250
