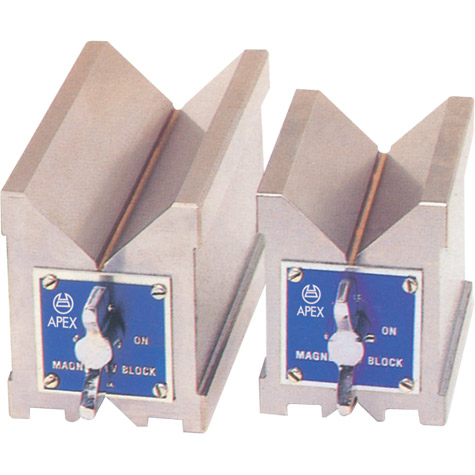

Magnetic Vee Blocks Soft (Pair)

APEX Code 769

Magnetic Vee Blocks Soft (Pair)

Features :
  • Designed for versatility and accuracy, these Vee Blocks are ideal for holding round or irregular shapes for scribing, grinding measuring, machining and testing applications.
  • These can be used either ways, up or standing on end. All Vee's and faces can be energized or de energized simultaneously by turning the rotary action control knob. This feature enables the Vee Block to hold both itself and the work on any flat ferrous surface including a permanent magnetic chuck (without energizing the chuck)
  • For Applications require two Vee Block matched & numbered pairs are available.
Specifications
Code Size of a V-Block Holding
  Inch MM Capacity ( MM )
769-1 ... 2.5/8x2x2.3/8 65x60x50 38
769-2 769H-2 3.1/4x2.3/8x3.3/4 80x65x60 48
769-3 769H-3 4x3x3.3/4 100x95x75 62
769-4 769H-4 6x3x3.3/4 150x95x75 65
769-5 ... 8x4x6 200x150x100 90
