778

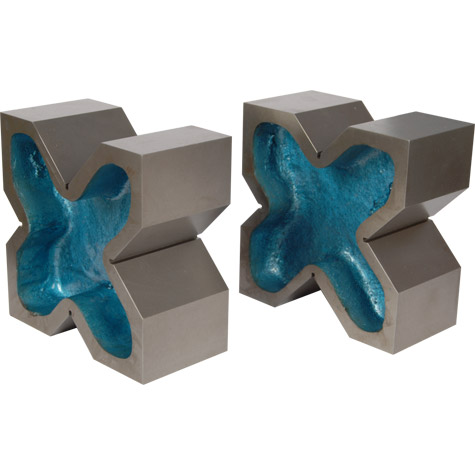

4 Way Vee Blocks-Cast Iron

APEX Code 778

4 Way Vee Blocks-Cast Iron

Features :
  • Manufactured and supplied in matched and numbered pairs.
  • Each Block incorporates 4 different sized Vee's thereby supporting a wide range of sizes. This enables a single block to be used as a workholding device for supporting different sized jobs.
  • The larger sizes incorporate a cavity on either sides for convenience in handling during usage.
Application :
  • These are very useful for making and checking of cylinderical parts.
Construction :
  • Made from close grained cast iron.
  • These vee block are precisely ground and machined square and parllel.
Accuracy :
  • Squareness and Parallelism of vee grooves with respect to base (30 Microns)
Specifications in mm
Code 778 WIdth ( in mm ) Length ( in mm ) Height ( in mm ) Vee Capacity ( in mm )
778-1 35 95 70 20x30x40x50
778-2 30 100 100 20x30x40x50
778-3 35 120 120 30x40x50x60
778-4 60 120 120 30x40x50x60
778-5 75 150 150 40x50x60x70
778-6 100 200 200 60x70x80x100
